Solstice Font Liquid Cooling Kit

Transform your current font into a liquid-cooled version using this affordable kit. Say goodbye to first pour foam and reduce beer waste with just one simple upgrade.

The Liquid Font Cooling Kit is made to use the cold from your KegMaster to cool your font. All you need to do is swap out the normal fan and start cooling like a pro. It works with fully flooded fonts or setups with a cooling loop.

Make sure your font is floodable before installing. If it isn’t, you might be able to seal it up yourself and turn it into a floodable font. Keep in mind, this kit isn’t meant to ice up the font. It’s designed to cool your font better than the standard air-cooling setup.

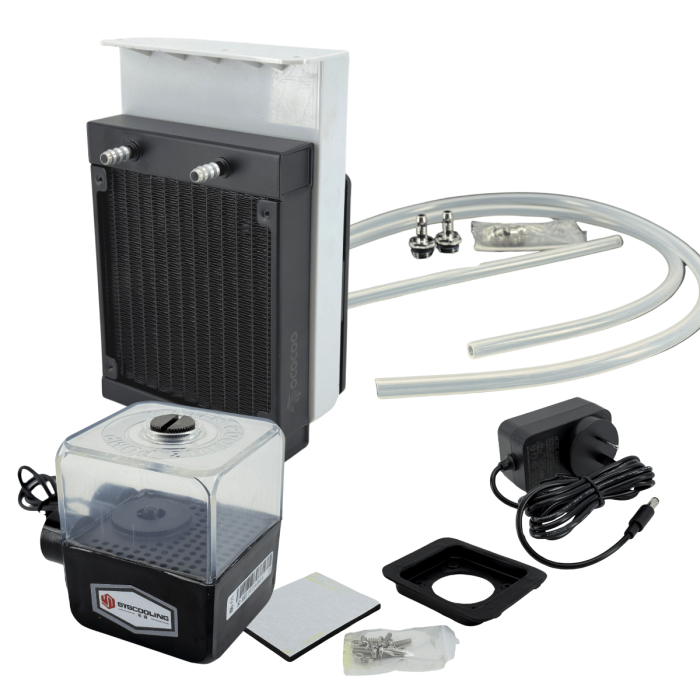

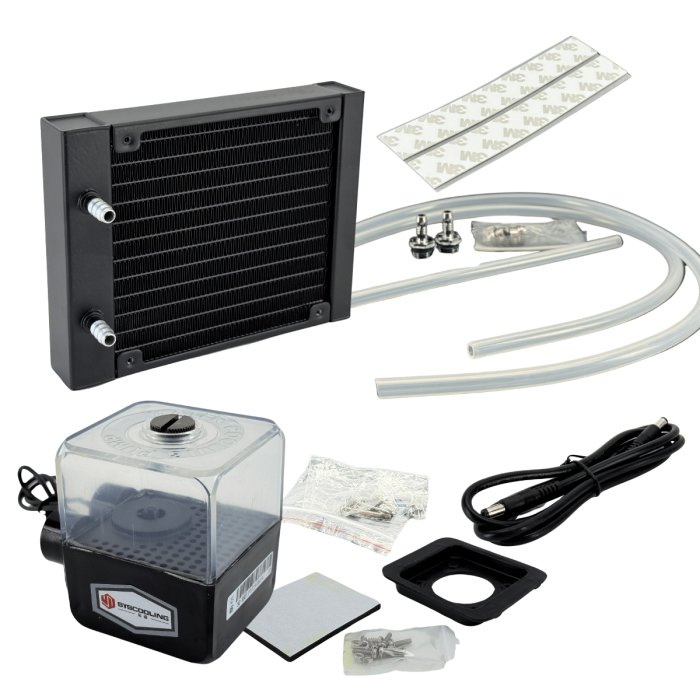

Parts included:

1x heat exchanger

1x male - male 12v jack lead

1x 12v Pump

Fittings and accessories to connect pump to radiators, double sided tape etc

Not included:

1x connector to connect the line to the steel tube

Instructions:

1. Connect the cable to the pump.
2. Connect the cable to the Solstice.
3. Put Sticker #1 and Sticker #2 on the radiator.
4. Stick the radiator in front of the fan.
   Connect the tubing from the pump to the long steel tube (push-in fitting).
5. Connect the tubing from the radiator to the short barb fitting.
   Turn on the pump.
6. Fill water into the hole until the system is full.Put the cap back after there are no air bubbles in the system.

Download PDF Instructions here.
